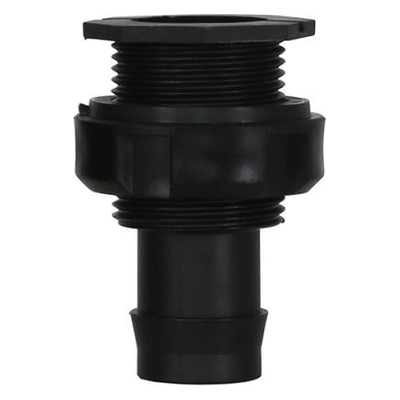

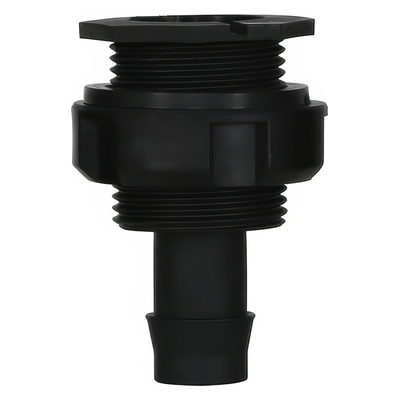

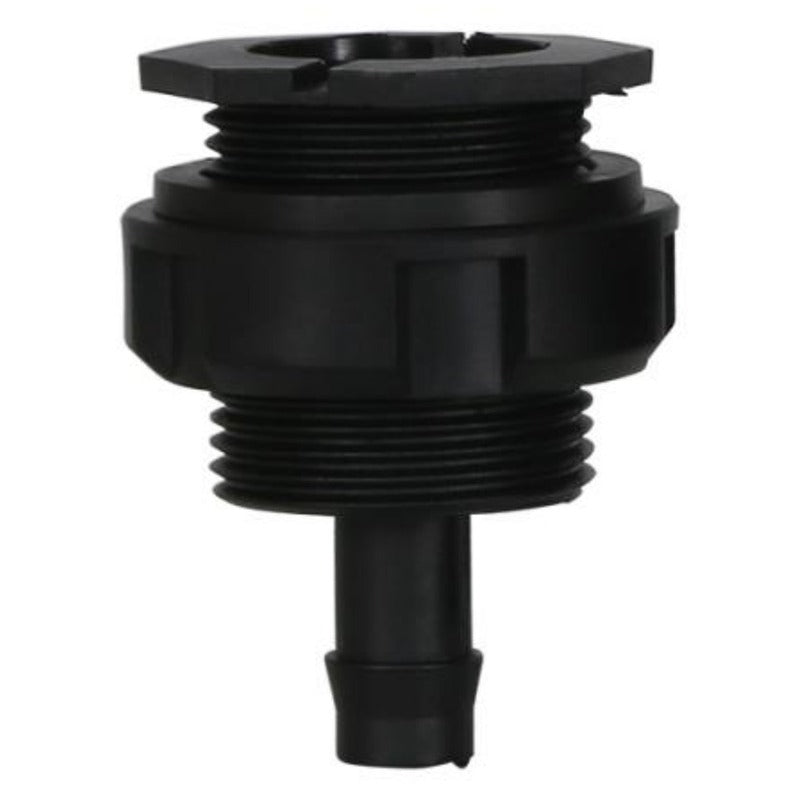

Botanicare Ebb & Flow Barbed Fitting - 1/2 in, 3/4 in and 1 in Bulkhead Fill and Drain Fitting for Flood Trays

Botanicare Ebb & Flow Barbed Fittings are bulkhead fittings that mount through a drilled hole in a flood tray to fill or drain it. They are made of injection-molded black plastic, and the interior thread on every size accepts standard 3/4 in NPT, so Botanicare extensions and screens or PVC fittings can be threaded in. Botanicare's Slide Bench guide uses a 3/4 in bulkhead for supply and a 1 in bulkhead for drain.

Key Features

• Three barb sizes: 1/2 in (13 mm), 3/4 in (19 mm) and 1 in (25 mm)
• 3/4 in NPT interior thread on every size
• Installs in a 1-3/8 in (35 mm) drilled hole
• Accepts Botanicare Extension Fittings and Screen Fittings to set flood height and keep debris out
• Also works for aeroponic and drip plumbing through 3/4 in NPT threaded PVC fittings

How to Use

Drill a 1-3/8 in hole in the tray, seat the fitting with its washer and nut, and connect tubing to the barb. Add an extension to set the flood level and a screen on top to block debris and splashing. Use the 1/2 in size for a pump-fed fill line, the 3/4 in for fill or overflow, and the 1 in for drain.

Product Details

• Sizes: 1/2 in, 3/4 in and 1 in barbed outlet
• Thread: 3/4 in NPT interior
• Color: Black
• Made by: Botanicare

Model # / SKU:
1/2 in: HGC708551
3/4 in: 708552
1 in: HGC708558
